LV-13/LV-14

Products > LED Panel Light > LV-13/LV-14

1
2

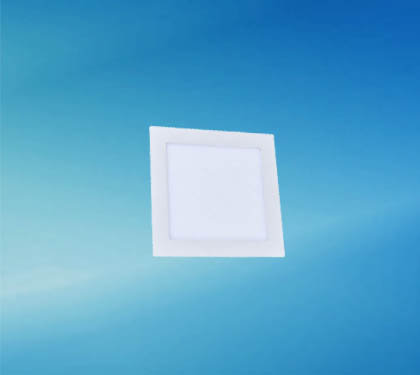

LV-13/LV-14

Product details

Feature:

Input voltage: 90-265V/185-265V 50/60Hz

Housing material: Aluminium

Recessed installation

Power supply: External driver with constant current

Working life: 30000 Hours

CE & Rohs approved

Applications: Office, library, school, hospital, shopping mall, supermarket, hotel, residential etc.

Type	Wattage(W)	CRI	Color Temperature(K)	Output Lumens(lm)	Size LxWxH(mm)
LV-13	3W	≥80	2700-6500	240	φ85*11
LV-13	4W	≥80	2700-6500	320	φ105*11
LV-13	6W	≥80	2700-6500	480	φ120*11
LV-13	9W	≥80	2700-6500	720	φ146*11
LV-13	12W	≥80	2700-6500	960	φ174*11
LV-13	15W	≥80	2700-6500	1200	φ200*11
LV-13	18W	≥80	2700-6500	1440	φ225*11
LV-13	20W	≥80	2700-6500	1600	φ237*11
LV-13	25W	≥80	2700-6500	2000	φ300*11
LV-13	36W	≥80	2700-6500	2880	φ600*11
LV-13	48W	≥80	2700-6500	3840	φ600*11
LV-14	3W	≥80	2700-6500	240	858511.5
LV-14	4W	≥80	2700-6500	320	10510511.5
LV-14	6W	≥80	2700-6500	480	12012011.5
LV-14	9W	≥80	2700-6500	720	14614611.5
LV-14	12W	≥80	2700-6500	960	17417411.5
LV-14	15W	≥80	2700-6500	1200	22522511.5
LV-14	18W	≥80	2700-6500	1440	30030011.5
