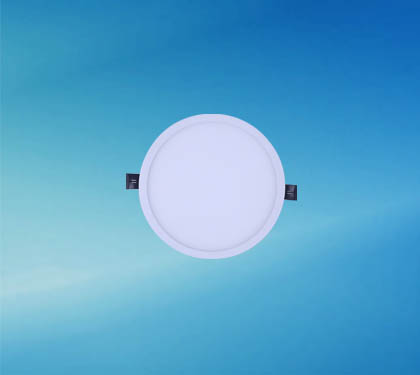

LV-15/LV-16
LV-15/LV-16
Feature:
Input voltage: 90-265V/185-265V 50/60Hz
Housing material: Aluminium
Recessed installation
Power supply: Built-in driver with constant current
Working life: 30000 Hours
CE & Rohs approved
Applications: Office, library, school, hospital, shopping mall, supermarket, hotel, residential etc.
| Type | Wattage(W) | CRI | Color Temperature(K) | Output Lumens(lm) | Size LxWxH(mm) |
| LV-15 | 5W | ≥80 | 2700-6500 | 400 | φ70*30 |
| LV-15 | 8W | ≥80 | 2700-6500 | 640 | φ90*30 |
| LV-15 | 16W | ≥80 | 2700-6500 | 1280 | φ148*30 |
| LV-15 | 22W | ≥80 | 2700-6500 | 1760 | φ172*30 |
| LV-15 | 30W | ≥80 | 2700-6500 | 2400 | φ222*30 |
| LV-16 | 5W | ≥80 | 2700-6500 | 400 | 72*72*30 |
| LV-16 | 8W | ≥80 | 2700-6500 | 640 | 83*83*30 |
| LV-16 | 16W | ≥80 | 2700-6500 | 1280 | 140*140*30 |
| LV-16 | 22W | ≥80 | 2700-6500 | 1760 | 165*165*30 |
| LV-16 | 30W | ≥80 | 2700-6500 | 2400 | 210*210*30 |
